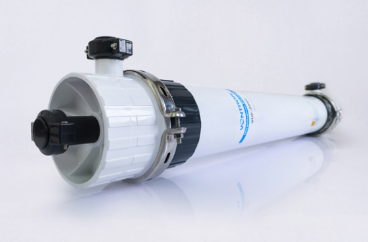

Hollow Fiber Pressure UF Series
Product Introduction
Hollow fiber ultrafiltration membranes are mainly used to remove suspended solids, colloids, and bacteria from aqueous solutions, and are widely applied in drinking water purification, seawater desalination pretreatment, and wastewater reuse purification.
Application Scope
Drinking water purification;
Seawater desalination pretreatment;
Wastewater reuse purification.
External Pressure Ultrafiltration Membrane Performance Parameter Table
Membrane Module Model | Effective Membrane Area m2 | Design Flux LMH | Nominal Pore Size μm | Membrane Fiber Material | Production Process |
VUF-2860 | 51 | 30-120 | 0.02 | PVDF | NIPS |
VUF-2880 | 77 | 30-120 | 0.02 | PVDF | NIPS |
VUF-2860T | 51 | 35-120 | 0.08 | PVDF | TIPS |
VUF-2880T | 77 | 35-120 | 0.08 | PVDF | TIPS |
More models are available and can be customized according to customer needs. | |||||
Internal Pressure Ultrafiltration Membrane Performance Parameter Table
Membrane Module Model | Effective Membrane Area m2 | Design Flux LMH | Nominal Pore Size μm | Membrane Fiber Material | Production Process | |||||
VUF-i1066 | 50 | 40-200 | 0.02 | PES | NIPS | |||||
VUF-i1066X | 60 | 40-200 | 0.02 | PES | NIPS | |||||
More models are available and can be customized according to customer needs. | ||||||||||
*The website only displays part of the product models. For detailed information on all products, please call 4000-111-880.
* Product performance may vary under different conditions. The information on this website is for reference only and cannot be used as a guarantee of actual application performance. Users are responsible for determining whether the products and information on this website are suitable for their usage environment and ensuring that the use of the products complies with applicable laws and regulations. Wharton Technology assumes no obligations or responsibilities for the information on this website, and any consequences arising from the user's failure to use and maintain the products according to the conditions provided in this sample are unrelated to the company. Due to technological advancements and product updates, product information and data may change at any time without prior notice. Please pay attention to the latest product information.
Hollow Fiber Pressure Ultrafiltration (UF) is an advanced membrane filtration technology widely used for water purification, wastewater treatment, and industrial process separation. The system consists of numerous hollow fiber membranes, which are fine, tube-like structures with porous walls. These fibers, typically made from materials like polyethersulfone (PES) or polyvinylidene fluoride (PVDF), provide a high surface area for efficient filtration.
In pressure-driven UF, feed water is forced through the fiber walls under applied pressure, allowing water and small solutes to pass while retaining suspended solids, bacteria, viruses, and macromolecules. The hollow fiber design enhances mechanical strength and fouling resistance while enabling backwashing for cleaning.
Key advantages include compact design, high filtration efficiency, low energy consumption, and scalability for various applications, from drinking water production to bioprocessing. Its modular configuration allows flexible system design, making it suitable for both small-scale and large-scale operations. Hollow Fiber Pressure UF is a reliable solution for achieving high-quality filtrate with minimal operational complexity.
